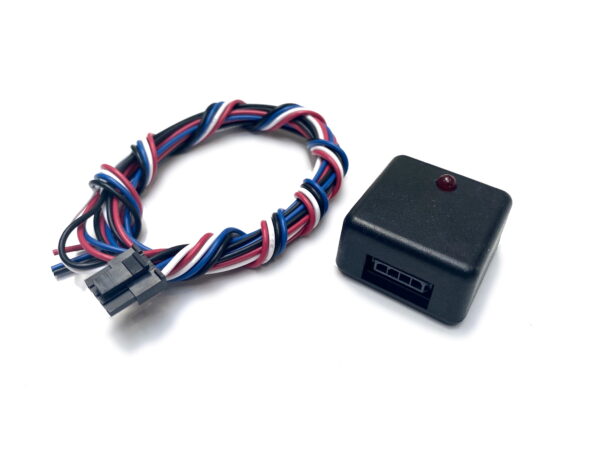

Zeitronix ZAVT-1 Alarm & trigger box
... people are viewing this right now
Description The ZAVT-1 can be connected to the Zt-2’s warning output and will trigger a loud 95db alarm, a bright LED and trigger a relay if required upon detection of one of the following cases: AFR too rich The alarm activates when too rich mixture is detected. AFR too lean The alarm activates when too lean mixture is detected. A combination of AFR too rich and AFR too lean alarms can be used to tune for a specific AFR window. EGT too high The alarm activates when EGT exceeds a safe user selected level. RPM too high Shift-light functionality with a bonus of audio alarm and a relay trigger. TPS too high The alarm activates when TPS exceeds a selected level. USER1 Input too high The alarm activated if a sensor connected to the USER1 input exceeds a selected level. USER1 Input too low The alarm activated if a sensor connected to the USER1 input is lower than a selected level. Relay trigger: Open or close a relay circuit to activate or deactivate additional devices at a set warning level. Typically used to add a control to your boost setting, nitrous or alcohol injection and other devices capable of engine destruction. The Audio Visual Warning and Trigger Box alarm is activated by the Zeitronix Zt-2 Wideband controller. The audio alarm can be deactivated by adjusting the switch SW1 inside the box. The visual alarm and a relay trigger are always active. The ZAVT-1 blue wire connects to the Zt-2 Warning Output (white wire with a blue stripe). For further information and an insight into configuration, see here: www.zeitronix.com/Products/zavt/zavt1.htm
