E-Moto Torp Motor TM25 for SurRon Light Bee
... people are viewing this right now

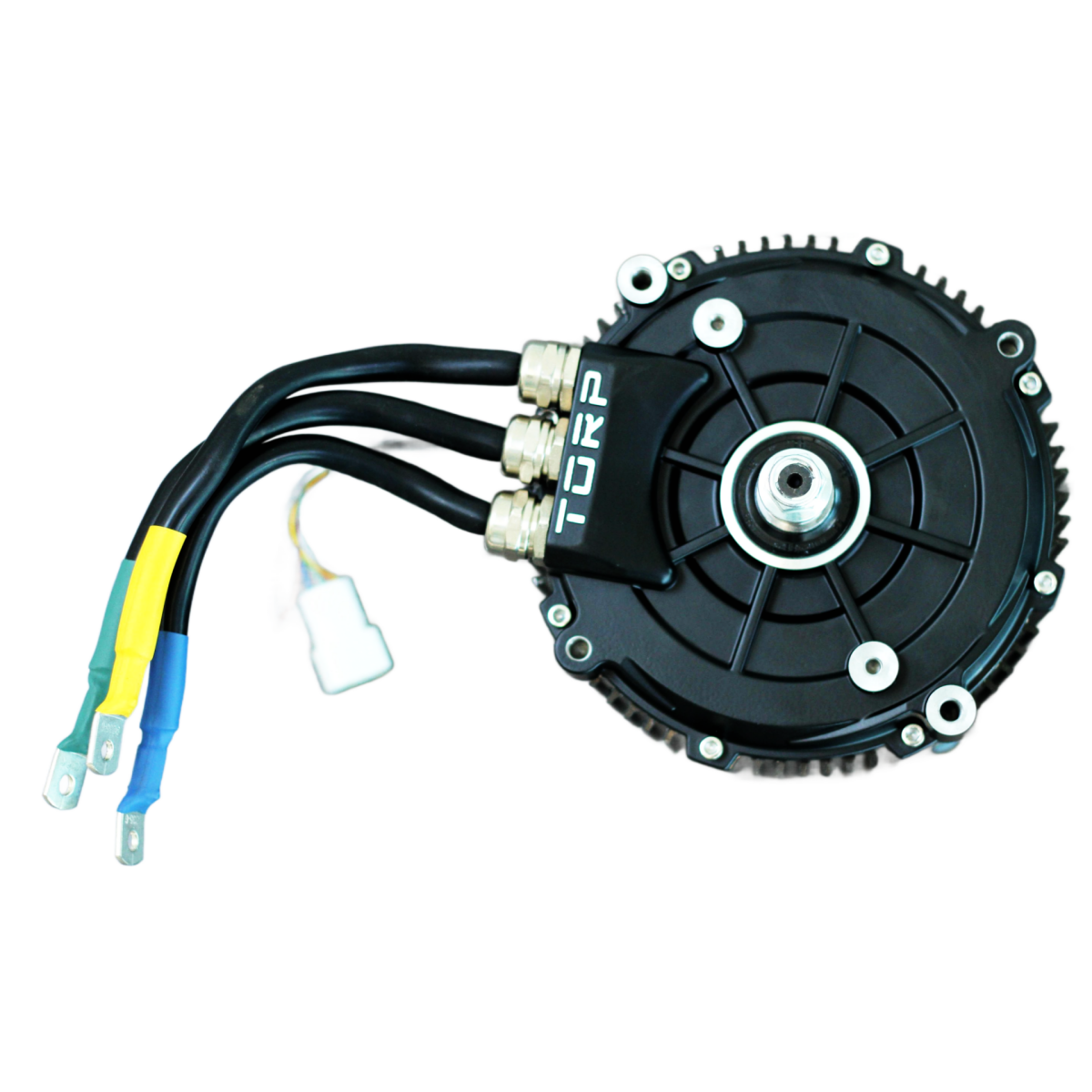

E-Moto Torp Motor TM25 for SurRon Light Bee. The fastest motor for the SurRon Light Bee on the market! Torp-engineered, broadly compatible While the Torp TM25 motor is optimized for use with Torp controllers, its versatility allows seamless integration with other controller brands and adaptability across a range of vehicles. – Designed for the Sur-Ron Lightbee, with mounting flexibility for other bikes. – Hall sensor or encoder? It supports both! – Three times less resistance than the standard Sur-Ron motor. TM25 is compatible with the TC500 controller, hardware version 1.3 and later. SPECIFICATIONS: Weight – 21.6lbs Torque – 57Nm Peak Power – 25000W Motor type: IPM Voltage: 48V-120V Continuous Power: 13 kW Peak Power: on 72V: 27 kW on 80V: 31 kW on 120V: 40 kW Rated Speed: 6000 RPM Max RPM: 10,000 RPM Position sensor: Hall sensor or Encoder Encoder points: 1024 (4096) Max magnet temp.: 150 °C Phase current: up to 700 A Kt constant [Nm/A]: 0.105 Torque 500 A: 52.5 Nm Torque 700 A: 67 Nm KV rating: 85 Motor Resistance 3,4 mO Temp. sensor: PT1000 Efficiency: up to 95% Protection class: IP67 Weight: 10 kg Motor Size 115*165 mm Temp. sensor: PT1000 Installation: Mid Number of pole pairs: 5 Cooling method: Air Our products are rated IP67, based on tests conducted in distilled water under controlled laboratory conditions. However, this rating does not indicate that the product is suitable for prolonged underwater use, as it may lead to damage. Please also be aware that the connectors are not waterproof and must remain dry to ensure proper functionality and safety. Modifying a stock electric vehicle can result in the vehicle becoming non-compliant with your local road safety regulations. It’s essential to consult with experts or authorities before modifying your vehicle to ensure adherence to road legality.
